產品名稱：MPDW系列 產品編號：111254-595 產品型號：磁棒電感 公司名稱：深圳市麥新(MT)電子有限公司
|

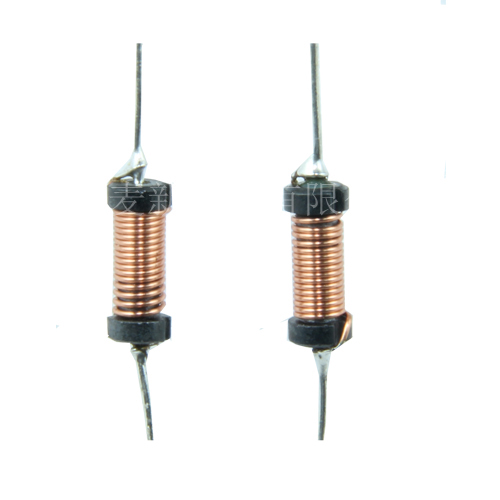

點擊查看大圖 ↑ |
MPDW TYPE

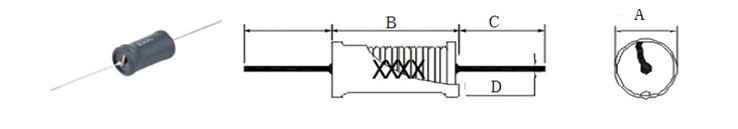

0External dimensions (unit : mm)（外觀尺寸
.jpg)
|
PART NO. |
A |
B |
C |
D |
|
MPDW0306 |
4.5±0.5 |
55±1 |
8.9 |
0.6±0.1 |
|
MPDW0308 |
4.5±0.5 |
55±1 |
10 |
0.6±0.1 |
|
MPDW0610 |
6.5±0.5 |
55±1 |
12 |
0.6±0.1 |
|
MPDW0812 |
8.5±0.5 |
55±1 |
14 |
0.6±0.1 |
|
MPDW0912 |
0.5±0.5 |
70±1 |
16 |
0.8±0.1 |
|
MPDW1124 |
11.5±0.5 |
64±1 |
24 |
1.0±0.1 |
0PART NUMBERING SYSTEM （品名系統）
MPDW 0610 - 100 口 B
1 2 3 4 5
1 Series Name 品名 麥新插件料號.
2 Dimensions 尺寸 外圍X高度
3 Inductance 電感值 前兩位為有效數字,第三位表0的個數, 150:15uH 151 :150uH
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包裝方式 T: Tape& Reel (卷裝) B: In Bulk (散裝/袋裝)
0FEATURES
1.Contain high-frequency ferrite.
2.Compaeativey large rated current.
0特性
1.高頻磁性材料
2.可承載較大的電流
0APPLICATION(應用)
1.Power supplies DC-DC converters
2.TVs,VTRs,computers.
3.computer Peripherals.
4.Telephones,Air-Conditions.
5.Home Electric Appliance.
6.Electronic toys and games.
0(應用)
1. 電源供應器,直流對直流轉換器
2. 電視VTR電腦
3. 電腦周邊產品
4. 電話空調
5. 家用電器產品
6. 電子玩具及游戲
MPDW0306 SERIES
|
Part Number 品名. |
Impedance (uh) 電感值 |
Q (min) 品質系數 |
DCR(max) (Ω). 直流阻抗 |
IDC(max)(mA) 額定電流 |
SRF(min) (MHz) 自諧頻率 |
Test Freq 測試頻率 |
|
MPDW0306-R10M |
0.10 |
40 |
0.06 |
1800 |
500 |
2.52MHZ |
|
MPDW0306-R12M |
0.12 |
40 |
0.06 060. |
1800 |
450 |
2.52MHZ |
|
MPDW0306-R15M |
0.15 |
45 |
0.07 |
1800 |
430 |
2.52MHZ |
|
MPDW0306-R18M |
0.18 |
50 |
0.07 |
1700 |
380 |
2.52MHZ |
|
MPDW0306-R22M |
0.22 |
50 |
0.08 |
1600 |
350 |
2.52MHZ |
|
MPDW0306-R27M |
0.27 |
50 |
0.09 |
1600 |
320 |
2.52MHZ |
|
MPDW0306-R33M |
0.33 |
55 |
0.10 |
1500 |
290 |
2.52MHZ |
|
MPDW0306-R39M |
0.39 |
55 |
0.10 |
1500 |
270 |
2.52MHZ |
|
MPDW0306-R47M |
0.47 |
55 |
0.11 |
1500 |
250 |
2.52MHZ |
|
MPDW0306-R56M |
0.56 |
60 |
0.12 |
1400 |
230 |
2.52MHZ |
|
MPDW0306-R68M |
0.68 |
60 |
0.13 |
1400 |
200 |
2.52MHZ |
|
MPDW0306-R82M |
0.82 |
50 |
0.14 |
1200 |
180 |
2.52MHZ |
|
MPDW0306-1R0K |
1.0 |
50 |
0.18 |
1100 |
96 |
7.96MHZ |
|
MPDW0306-1R2K |
1.2 |
55 |
0.20 |
1100 |
87 |
7.96MHZ |
|
MPDW0306-1R5K |
1.5 |
55 |
0.21 |
1000 |
80 |
7.96MHZ |
|
MPDW0306-1R8K |
1.8 |
55 |
0.24 |
1000 |
72 |
7.96MHZ |
|
MPDW0306-2R2K |
2.2 |
55 |
0.26 |
950 |
65 |
7.96MHZ |
|
MPDW0306-2R7K |
2.7 |
60 |
0.30 |
900 |
59 |
7.96MHZ |
|
MPDW0306-3R3K |
3.3 |
65 |
0.33 |
850 |
54 |
7.96MHZ |
|
MPDW0306-3R9K |
3.9 |
70 |
0.35 |
800 |
51 |
7.96MHZ |
|
MPDW0306-4R7K |
4.7 |
70 |
0.40 |
800 |
46 |
7.96MHZ |
|
MPDW0306-5R6K |
5.6 |
70 |
0.42 |
750 |
42 |
7.96MHZ |
|
MPDW0306-6R8K |
6.8 |
60 |
0.46 |
750 |
36 |
7.96MHZ |
|
MPDW0306-8R2K |
8.2 |
60 |
0.52 |
650 |
29 |
7.96MHZ |
|
MPDW0306-100K |
10 |
60 |
0.53 |
600 |
27 |
2.52MHZ |
|
MPDW0306-120K |
12 |
60 |
0.68 |
550 |
25 |
2.52MHZ |
|
MPDW0306-150K |
15 |
60 |
0.77 |
500 |
22 |
2.52MHZ |
|
MPDW0306-180K |
18 |
60 |
0.85 |
450 |
21 |
2.52MHZ |
|
MPDW0306-220K |
22 |
60 |
0.94 |
400 |
15 |
2.52MHZ |
|
MPDW0306-270K |
27 |
60 |
1.1 |
400 |
11 |
2.52MHZ |
|
MPDW0306-330K |
33 |
55 |
1.3 |
350 |
9.4 |
2.52MHZ |
|
MPDW0306-390K |
39 |
55 |
1.7 |
300 |
9.0 |
2.52MHZ |
|
MPDW0306-470K |
47 |
55 |
1.8 |
300 |
7.6 |
2.52MHZ |
|
MPDW0306-560K |
56 |
55 |
2.1 |
300 |
7.4 |
2.52MHZ |
|
MPDW0306-680K |
68 |
60 |
2.4 |
280 |
6.9 |
2.52MHZ |
|
MPDW0306-820K |
82 |
60 |
2.6 |
250 |
6.0 |
2.52MHZ |
|
MPDW0306-101K |
100 |
60 |
3.3 |
200 |
5.0 |
796KHZ |
|
MPDW0306-121K |
120 |
60 |
3.8 |
170 |
4.7 |
796KHZ |
|
MPDW0306-151K |
150 |
60 |
4.2 |
130 |
4.0 |
796KHZ |
|
MPDW0306-181K |
180 |
60 |
4.7 |
110 |
3.7 |
796KHZ |
|
MPDW0306-221K |
220 |
60 |
5.1 |
100 |
3.6 |
796KHZ |
|
MPDW0306-271K |
270 |
60 |
5.7 |
100 |
3.0 |
796KHZ |
|
MPDW0306-331K |
330 |
60 |
6.4 |
100 |
3.0 |
796KHZ |
|
MPDW0306-391K |
390 |
55 |
9.0 |
90 |
2.3 |
796KHZ |
|
MPDW0306-471K |
470 |
50 |
9.7 |
90 |
2.1 |
796KHZ |
|
MPDW0306-561K |
560 |
50 |
11 |
80 |
2.0 |
796KHZ |
|
MPDW0306-681K |
680 |
50 |
12 |
70 |
1.9 |
796KHZ |
|
MPDW0306-821K |
820 |
45 |
18 |
50 |
1.8 |
796KHZ |
|
MPDW0306-102K |
1000 |
50 |
22 |
50 |
1.6 |
252KHZ |
|
MPDW0306-122K |
1200 |
40 |
36 |
25 |
1.3 |
252KHZ |
|
MPDW0306-152K |
1500 |
40 |
41 |
25 |
1.2 |
252KHZ |
|
MPDW0306-182K |
1800 |
40 |
45 |
25 |
1.1 |
252KHZ |
|
MPDW0306-222K |
2200 |
40 |
51 |
20 |
1.0 |
252KHZ |
|
MPDW0306-272K |
2700 |
40 |
56 |
20 |
0.9 |
252KHZ |
|
MPDW0306-332K |
3300 |
40 |
63 |
20 |
0.8 |
252KHZ |
|
MPDW0306-392K |
3900 |
40 |
69 |
20 |
0.8 |
252KHZ |
|
MPDW0306-472K |
4700 |
40 |
70 |
20 |
0.7 |
252KHZ |
MPDW0308 SERIES
|
Part Number 品名. |
Impedance (uh) 電感值 |
Q (min) 品質系數 |
DCR(max) (Ω). 直流阻抗 |
IDC(max)(mA) 額定電流 |
SRF(min) (MHz) 自諧頻率 |
Test Freq 測試頻率 |
|
MPDW0308-1R0M |
1.0 |
60 |
0.10 |
1500 |
130 |
7.96MHZ |
|
MPDW0308-1R2M |
1.2 |
60 |
0.10 |
1400 |
120 |
7.96MHZ |
|
MPDW0308-1R5M |
1.5 |
60 |
0.12 |
1300 |
110 |
7.96MHZ |
|
MPDW0308-1R8M |
1.8 |
60 |
0.13 |
1300 |
100 |
7.96MHZ |
|
MPDW0308-2R2M |
2.2 |
60 |
0.14 |
1200 |
90 |
7.96MHZ |
|
MPDW0308-2R7M |
2.7 |
60 |
0.16 |
1200 |
80 |
7.96MHZ |
|
MPDW0308-3R3M |
3.3 |
60 |
0.17 |
1200 |
73 |
7.96MHZ |
|
MPDW0308-3R9M |
3.9 |
60 |
0.19 |
1200 |
67 |
7.96MHZ |
|
MPDW0308-4R7M |
4.7 |
60 |
0.21 |
1100 |
64 |
7.96MHZ |
|
MPDW0308-5R6M |
5.6 |
60 |
0.22 |
1100 |
58 |
7.96MHZ |
|
MPDW0308-6R8M |
6.8 |
70 |
0.25 |
1000 |
58 |
7.96MHZ |
|
MPDW0308-8R2M |
8.2 |
70 |
0.28 |
1000 |
45 |
7.96MHZ |
|
MPDW0308-100K |
10 |
70 |
0.55 |
600 |
43 |
2.52MHZ |
|
MPDW0308-120K |
12 |
80 |
0.62 |
600 |
39 |
2.52MHZ |
|
MPDW0308-150K |
15 |
80 |
0.68 |
600 |
34 |
2.52MHZ |
|
MPDW0308-180K |
18 |
70 |
0.76 |
600 |
27 |
2.52MHZ |
|
MPDW0308-220K |
22 |
60 |
0.84 |
600 |
16 |
2.52MHZ |
|
MPDW0308-270K |
27 |
60 |
0.89 |
550 |
12 |
2.52MHZ |
|
MPDW0308-330K |
33 |
50 |
1.0 |
500 |
9.1 |
2.52MHZ |
|
MPDW0308-390K |
39 |
60 |
1.4 |
450 |
9.0 |
2.52MHZ |
|
MPDW0308-470K |
47 |
60 |
1.4 |
450 |
9.0 |
2.52MHZ |
|
MPDW0308-560K |
56 |
50 |
1.5 |
450 |
7.4 |
2.52MHZ |
|
MPDW0308-680K |
68 |
45 |
1.6 |
400 |
5.7 |
2.52MHZ |
|
MPDW0308-820K |
82 |
45 |
1.7 |
400 |
4.8 |
2.52MHZ |
|
MPDW0308-101K |
100 |
45 |
2.7 |
250 |
4.3 |
796KHZ |
|
MPDW0308-121K |
120 |
45 |
2.9 |
200 |
4.0 |
796KHZ |
|
MPDW0308-151K |
150 |
45 |
3.4 |
200 |
3.2 |
796KHZ |
|
MPDW0308-181K |
180 |
45 |
3.7 |
200 |
3.1 |
796KHZ |
|
MPDW0308-221K |
220 |
40 |
4.0 |
180 |
2.7 |
796KHZ |
|
MPDW0308-271K |
270 |
40 |
4.1 |
180 |
2.7 |
796KHZ |
|
MPDW0308-331K |
330 |
35 |
4.6 |
170 |
2.2 |
796KHZ |
|
MPDW0308-391K |
390 |
35 |
6.7 |
150 |
2.2 |
796KHZ |
|
MPDW0308-471K |
470 |
35 |
7.4 |
130 |
1.8 |
796KHZ |
|
MPDW0308-561K |
560 |
35 |
8.0 |
110 |
1.8 |
796KHZ |
|
MPDW0308-681K |
680 |
35 |
8.5 |
100 |
1.7 |
796KHZ |
|
MPDW0308-821K |
820 |
35 |
9.4 |
90 |
1.5 |
796KHZ |
|
MPDW0308-102K |
1000 |
45 |
16 |
90 |
0.98 |
252KHZ |
|
MPDW0308-122K |
1200 |
45 |
17 |
80 |
0.96 |
252KHZ |
|
MPDW0308-152K |
1500 |
45 |
27 |
70 |
0.97 |
252KHZ |
|
MPDW0308-182K |
1800 |
45 |
28 |
70 |
0.79 |
252KHZ |
|
MPDW0308-222K |
2200 |
40 |
32 |
60 |
0.79 |
252KHZ |
|
MPDW0308-272K |
2700 |
40 |
36 |
50 |
0.69 |
252KHZ |
|
MPDW0308-332K |
3300 |
40 |
39 |
40 |
0.68 |
252KHZ |
|
MPDW0308-392K |
3900 |
40 |
43 |
30 |
0.59 |
252KHZ |
|
MPDW0308-472K |
4700 |
40 |
48 |
30 |
0.61 |
252KHZ |
MPDW0610 SERIES
|
Part Number 品名. |
Impedance (uh) 電感值 |
Q (min) 品質系數 |
DCR(max) (Ω). 直流阻抗 |
IDC(max)(mA) 額定電流 |
SRF(min) (MHz) 自諧頻率 |
Test Freq 測試頻率 |
|
MPDW0610-1R0M |
1.0 |
100 |
0.02 |
2500 |
98 |
7.96MHZ |
|
MPDW0610-1R2M |
1.2 |
100 |
0.02 |
2500 |
90 |
7.96MHZ |
|
MPDW0610-1R5M |
1.5 |
100 |
0.02 |
2500 |
78 |
7.96MHZ |
|
MPDW0610-1R8M |
1.8 |
100 |
0.02 |
2500 |
74 |
7.96MHZ |
|
MPDW0610-2R2M |
2.2 |
100 |
0.02 |
2500 |
59 |
7.96MHZ |
|
MPDW0610-2R7M |
2.7 |
100 |
0.02 |
2500 |
46 |
7.96MHZ |
|
MPDW0610-3R3M |
3.3 |
100 |
0.02 |
2500 |
38 |
7.96MHZ |
|
MPDW0610-3R9M |
3.9 |
90 |
0.03 |
2400 |
28 |
7.96MHZ |
|
MPDW0610-4R7M |
4.7 |
90 |
0.04 |
2100 |
30 |
7.96MHZ |
|
MPDW0610-5R6M |
5.6 |
90 |
0.04 |
1800 |
26 |
7.96MHZ |
|
MPDW0610-6R8M |
6.8 |
90 |
0.05 |
1700 |
25 |
7.96MHZ |
|
MPDW0610-8R2M |
8.2 |
80 |
0.05 |
1500 |
23 |
7.96MHZ |
|
MPDW0610-100K |
10 |
80 |
0.07 |
1400 |
19 |
2.52MHZ |
|
MPDW0610-120K |
12 |
80 |
0.08 |
1200 |
17 |
2.52MHZ |
|
MPDW0610-150K |
15 |
80 |
0.09 |
1100 |
15 |
2.52MHZ |
|
MPDW0610-180K |
18 |
80 |
0.11 |
1000 |
13 |
2.52MHZ |
|
MPDW0610-220K |
22 |
70 |
0.13 |
900 |
13 |
2.52MHZ |
|
MPDW0610-270K |
27 |
65 |
0.14 |
800 |
11 |
2.52MHZ |
|
MPDW0610-330K |
33 |
60 |
0.16 |
700 |
10 |
2.52MHZ |
|
MPDW0610-390K |
39 |
60 |
0.18 |
700 |
9.6 |
2.52MHZ |
|
MPDW0610-470K |
47 |
60 |
0.22 |
600 |
8.8 |
2.52MHZ |
|
MPDW0610-560K |
56 |
50 |
0.25 |
600 |
7.6 |
2.52MHZ |
|
MPDW0610-680K |
68 |
40 |
0.28 |
500 |
7.5 |
2.52MHZ |
|
MPDW0610-820K |
82 |
35 |
0.32 |
500 |
6.4 |
2.52MHZ |
|
MPDW0610-101K |
100 |
35 |
0.42 |
400 |
5.8 |
796KHZ |
|
MPDW0610-121K |
120 |
30 |
0.47 |
300 |
5.1 |
796KHZ |
|
MPDW0610-151K |
150 |
30 |
0.58 |
300 |
4.9 |
796KHZ |
|
MPDW0610-181K |
180 |
25 |
0.62 |
300 |
4.4 |
796KHZ |
|
MPDW0610-221K |
220 |
25 |
0.89 |
260 |
3.8 |
796KHZ |
|
MPDW0610-271K |
270 |
25 |
1.1 |
230 |
3.4 |
796KHZ |
|
MPDW0610-331K |
330 |
25 |
1.2 |
210 |
3.1 |
796KHZ |
|
MPDW0610-391K |
390 |
30 |
1.4 |
180 |
3.0 |
796KHZ |
|
MPDW0610-471K |
470 |
30 |
1.5 |
170 |
2.8 |
796KHZ |
|
MPDW0610-561K |
560 |
30 |
1.8 |
150 |
2.3 |
796KHZ |
|
MPDW0610-681K |
680 |
30 |
1.9 |
140 |
2.1 |
796KHZ |
|
MPDW0610-821K |
820 |
30 |
2.3 |
120 |
1.8 |
796KHZ |
|
MPDW0610-102K |
1000 |
70 |
2.8 |
100 |
1.6 |
252KHZ |
|
MPDW0610-122K |
1200 |
65 |
3.1 |
90 |
1.4 |
252KHZ |
|
MPDW0610-152K |
1500 |
60 |
3.6 |
80 |
1.3 |
252KHZ |
|
MPDW0610-182K |
1800 |
80 |
5.6 |
70 |
1.3 |
252KHZ |
|
MPDW0610-222K |
2200 |
80 |
6.3 |
70 |
1.2 |
252KHZ |
|
MPDW0610-272K |
2700 |
80 |
7.3 |
60 |
1.1 |
252KHZ |
|
MPDW0610-332K |
3300 |
90 |
10 |
50 |
0.8 |
252KHZ |
|
MPDW0610-392K |
390 |
90 |
12 |
50 |
0.8 |
252KHZ |
|
MPDW0610-472K |
4700 |
90 |
13 |
40 |
0.8 |
252KHZ |
|
MPDW0610-562K |
5600 |
80 |
15 |
40 |
0.7 |
252KHZ |
|
MPDW0610-682K |
6800 |
70 |
17 |
40 |
0.7 |
252KHZ |
|
MPDW0610-822K |
8200 |
60 |
19 |
35 |
0.6 |
79.6KHZ |
|
MPDW0610-103K |
10000 |
80 |
27 |
35 |
0.5 |
79.6KHZ |
|
MPDW0610-123K |
12000 |
80 |
35 |
35 |
0.5 |
79.6KHZ |
|
MPDW0610-153K |
15000 |
80 |
48 |
30 |
0.4 |
79.6KHZ |
|
MPDW0610-183K |
18000 |
80 |
65 |
30 |
0.3 |
79.6KHZ |
|
MPDW0610-223K |
22000 |
80 |
69 |
25 |
0.3 |
79.6KHZ |
|
MPDW0610-273K |
27000 |
80 |
84 |
25 |
0.3 |
79.6KHZ |
|
MPDW0610-333K |
33000 |
75 |
99 |
25 |
0.2 |
79.6KHZ |
|
MPDW0610-393K |
39000 |
75 |
108 |
25 |
0.2 |
79.6KHZ |
|
MPDW0610-473K |
47000 |
75 |
120 |
20 |
0.2 |
79.6KHZ |
MPDW0812 SERIES
|
Part Number 品名. |
Impedance (uh) 電感值 |
Q (min) 品質系數 |
DCR(max) (Ω). 直流阻抗 |
IDC(max)(mA) 額定電流 |
SRF(min) (MHz) 自諧頻率 |
Test Freq 測試頻率 |
|
MPDW0812-1R0M |
1.0 |
120 |
0.02 |
3400 |
145 |
7.96MHZ |
|
MPDW0812-1R2M |
1.2 |
120 |
0.02 |
3400 |
135 |
7.96MHZ |
|
MPDW0812-1R5M |
1.5 |
130 |
0.02 |
3400 |
126 |
7.96MHZ |
|
MPDW0812-1R8M |
1.8 |
130 |
0.02 |
3400 |
113 |
7.96MHZ |
|
MPDW0812-2R2M |
2.2 |
130 |
0.02 |
3300 |
111 |
7.96MHZ |
|
MPDW0812-2R7M |
2.7 |
130 |
0.03 |
3000 |
100 |
7.96MHZ |
|
MPDW0812-3R3M |
3.3 |
120 |
0.03 |
2800 |
53 |
7.96MHZ |
|
MPDW0812-3R9M |
3.9 |
120 |
0.03 |
2800 |
45 |
7.96MHZ |
|
MPDW0812-4R7M |
4.7 |
100 |
0.03 |
2400 |
35 |
7.96MHZ |
|
MPDW0812-5R6M |
5.6 |
90 |
0.03 |
2400 |
27 |
7.96MHZ |
|
MPDW0812-6R8M |
6.8 |
90 |
0.04 |
2300 |
21 |
7.96MHZ |
|
MPDW0812-8R2M |
8.2 |
80 |
0.04 |
2100 |
18 |
7.96MHZ |
|
MPDW0812-100K |
10 |
60 |
0.05 |
2000 |
17 |
2.52MHZ |
|
MPDW0812-120K |
12 |
60 |
0.05 |
1800 |
15 |
2.52MHZ |
|
MPDW0812-150K |
15 |
70 |
0.06 |
1500 |
13 |
2.52MHZ |
|
MPDW0812-180K |
18 |
70 |
0.07 |
1400 |
11 |
2.52MHZ |
|
MPDW0812-220K |
22 |
70 |
0.08 |
1300 |
11 |
2.52MHZ |
|
MPDW0812-270K |
27 |
60 |
0.11 |
1200 |
10 |
2.52MHZ |
|
MPDW0812-330K |
33 |
60 |
0.12 |
1100 |
9.2 |
2.52MHZ |
|
MPDW0812-390K |
39 |
55 |
0.13 |
1000 |
9.0 |
2.52MHZ |
|
MPDW0812-470K |
47 |
50 |
0.14 |
9000 |
7.0 |
2.52MHZ |
|
MPDW0812-560K |
56 |
50 |
0.16 |
800 |
6.8 |
2.52MHZ |
|
MPDW0812-680K |
68 |
50 |
0.21 |
700 |
6.1 |
2.52MHZ |
|
MPDW0812-820K |
82 |
50 |
0.24 |
600 |
6.0 |
2.52MHZ |
|
MPDW0812-101K |
100 |
50 |
0.30 |
400 |
4.0 |
796KHZ |
|
MPDW0812-121K |
120 |
45 |
0.34 |
400 |
4.0 |
796KHZ |
|
MPDW0812-151K |
150 |
45 |
0.48 |
350 |
3.8 |
796KHZ |
|
MPDW0812-181K |
180 |
45 |
0.55 |
350 |
3.2 |
796KHZ |
|
MPDW0812-221K |
220 |
40 |
0.62 |
350 |
3.2 |
796KHZ |
|
MPDW0812-271K |
270 |
35 |
0.69 |
300 |
2.7 |
796KHZ |
|
MPDW0812-331K |
330 |
35 |
0.78 |
300 |
2.8 |
796KHZ |
|
MPDW0812-391K |
390 |
35 |
1.4 |
250 |
2.3 |
796KHZ |
|
MPDW0812-471K |
470 |
35 |
1.6 |
250 |
2.1 |
796KHZ |
|
MPDW0812-561K |
560 |
30 |
1.7 |
200 |
2.0 |
796KHZ |
|
MPDW0812-681K |
680 |
30 |
2.0 |
180 |
1.9 |
796KHZ |
|
MPDW0812-821K |
820 |
25 |
2.4 |
150 |
1.9 |
796KHZ |
|
MPDW0812-102K |
1000 |
35 |
2.4 |
100 |
1.5 |
252KHZ |
|
MPDW0812-122K |
1200 |
40 |
2.4 |
100 |
1.4 |
252KHZ |
|
MPDW0812-152K |
1500 |
40 |
2.5 |
80 |
1.3 |
252KHZ |
|
MPDW0812-182K |
1800 |
45 |
3.4 |
70 |
1.1 |
252KHZ |
|
MPDW0812-222K |
2200 |
45 |
3.8 |
60 |
1.0 |
252KHZ |
|
MPDW0812-272K |
2700 |
50 |
4.9 |
60 |
0.9 |
252KHZ |
|
MPDW0812-332K |
3300 |
50 |
5.7 |
50 |
0.8 |
252KHZ |
|
MPDW0812-392K |
3900 |
45 |
6.3 |
50 |
0.8 |
252KHZ |
|
MPDW0812-472K |
4700 |
40 |
7.3 |
50 |
0.8 |
252KHZ |
|
MPDW0812-562K |
5600 |
55 |
11 |
40 |
0.6 |
252KHZ |
|
MPDW0812-682K |
6800 |
50 |
12 |
40 |
0.5 |
252KHZ |
|
MPDW0812-822K |
8200 |
45 |
14 |
40 |
0.5 |
252KHZ |
|
MPDW0812-103K |
10000 |
65 |
22 |
35 |
0.4 |
79.6KHZ |
|
MPDW0812-123K |
12000 |
65 |
24 |
35 |
0.4 |
79.6KHZ |
|
MPDW0812-153K |
15000 |
65 |
29 |
35 |
0.3 |
79.6KHZ |
|
MPDW0812-183K |
18000 |
65 |
32 |
35 |
0.3 |
79.6KHZ |
|
MPDW0812-223K |
22000 |
60 |
47 |
30 |
0.3 |
79.6KHZ |
|
MPDW0812-273K |
27000 |
55 |
54 |
30 |
0.2 |
79.6KHZ |
|
MPDW0812-333K |
33000 |
55 |
62 |
25 |
0.2 |
79.6KHZ |
|
MPDW0812-393K |
39000 |
50 |
69 |
25 |
0.2 |
79.6KHZ |
MPDW0914 SERIES
|
Part Number 品名. |
Impedance (uh) 電感值 |
Q (min) 品質系數 |
DCR(max) (Ω). 直流阻抗 |
IDC(max)(mA) 額定電流 |
SRF(min) (MHz) 自諧頻率 |
Test Freq 測試頻率 |
|||
|
MPDW0914-1R0M |
1.0 |
85 |
0.023 |
3500 |
86 |
7.96MHZ |
|||
|
MPDW0914-1R2M |
1.2 |
85 |
0.023 |
3500 |
79 |
7.96MHZ |
|||
|
MPDW0914-1R5M |
1.5 |
85 |
0.023 |
3500 |
79 |
7.96MHZ |
|||
|
MPDW0914-1R8M |
1.8 |
95 |
0.023 |
3500 |
69 |
7.96MHZ |
|||
|
MPDW0914-2R2M |
2.2 |
100 |
0.023 |
3500 |
62 |
7.96MHZ |
|||
|
MPDW0914-2R7M |
2.7 |
100 |
0.026 |
3500 |
56 |
7.96MHZ |
|||
|
MPDW0914-3R3M |
3.3 |
105 |
0.029 |
3500 |
50 |
7.96MHZ |
|||
|
MPDW0914-3R9M |
3.9 |
105 |
0.029 |
3500 |
46 |
7.96MHZ |
|||
|
MPDW0914-4R7M |
4.7 |
105 |
0.033 |
3500 |
42 |
7.96MHZ |
|||
|
MPDW0914-5R6M |
5.6 |
100 |
0.035 |
3500 |
36 |
7.96MHZ |
|||
|
MPDW0914-6R8M |
6.8 |
95 |
0.040 |
3500 |
32 |
7.96MHZ |
|||
|
MPDW0914-8R2M |
8.2 |
90 |
0.040 |
3500 |
25 |
7.96MHZ |
|||
|
MPDW0914-100K |
10 |
75 |
0.050 |
2500 |
21 |
2.52MHZ |
|||
|
MPDW0914-120K |
12 |
75 |
0.050 |
2400 |
14 |
2.52MHZ |
|||
|
MPDW0914-150K |
15 |
75 |
0.054 |
2000 |
11 |
2.52MHZ |
|||
|
MPDW0914-180K |
18 |
80 |
0.068 |
1930 |
10 |
2.52MHZ |
|||
|
MPDW0914-220K |
22 |
75 |
0.071 |
1760 |
9.5 |
2.52MHZ |
|||
|
MPDW0914-270K |
27 |
70 |
0.077 |
1490 |
8.5 |
2.52MHZ |
|||
|
MPDW0914-330K |
33 |
60 |
0.084 |
1490 |
7.3 |
2.52MHZ |
|||
|
MPDW0914-390K |
39 |
55 |
0.096 |
1280 |
6.8 |
2.52MHZ |
|||
|
MPDW0914-470K |
47 |
50 |
0.104 |
1220 |
6.7 |
2.52MHZ |
|||
|
MPDW0914-560K |
56 |
50 |
0.150 |
1060 |
5.6 |
2.52MHZ |
|||
|
MPDW0914-680K |
68 |
50 |
0.176 |
1000 |
5.4 |
2.52MHZ |
|||
|
MPDW0914-820K |
82 |
50 |
0.192 |
830 |
5.1 |
2.52MHZ |
|||
|
MPDW0914-101K |
100 |
50 |
0.25 |
610 |
3.7 |
796KHZ |
|||
|
MPDW0914-121K |
120 |
45 |
0.27 |
560 |
3.7 |
796KHZ |
|||
|
MPDW0914-151K |
150 |
45 |
0.31 |
470 |
3.5 |
796KHZ |
|||
|
MPDW0914-181K |
180 |
40 |
0.35 |
450 |
2.9 |
796KHZ |
|||
|
MPDW0914-221K |
220 |
45 |
0.51 |
380 |
2.7 |
796KHZ |
|||
|
MPDW0914-271K |
270 |
40 |
0.57 |
330 |
2.4 |
796KHZ |
|||
|
MPDW0914-331K |
330 |
40 |
0.64 |
330 |
2.2 |
796KHZ |
|||
|
MPDW0914-391K |
390 |
40 |
0.86 |
330 |
2.1 |
796KHZ |
|||
|
MPDW0914-471K |
470 |
35 |
0.95 |
330 |
1.9 |
796KHZ |
|||
|
MPDW0914-561K |
560 |
35 |
1.08 |
320 |
1.8 |
796KHZ |
|||
|
MPDW0914-681K |
680 |
30 |
1.09 |
320 |
1.7 |
796KHZ |
|||
|
MPDW0914-821K |
820 |
30 |
0.33 |
310 |
1.6 |
796KHZ |
|||
|
MPDW0914-102K |
1000 |
55 |
0.65 |
110 |
1.2 |
252KHZ |
|||
|
MPDW0914-122K |
1200 |
50 |
0.87 |
90 |
1.2 |
252KHZ |
|||
|
MPDW0914-152K |
1500 |
45 |
2.14 |
81 |
1.1 |
252KHZ |
|||
|
MPDW0914-182K |
1800 |
40 |
2.48 |
72 |
1.0 |
252KHZ |
|||
|
MPDW0914-222K |
2200 |
50 |
3.65 |
63 |
0.81 |
252KHZ |
|||
|
MPDW0914-272K |
2700 |
50 |
4.15 |
63 |
0.76 |
252KHZ |
|||
|
MPDW0914-332K |
3300 |
50 |
4.67 |
54 |
0.68 |
252KHZ |
|||
|
MPDW0914-392K |
3900 |
50 |
5.01 |
54 |
0.67 |
252KHZ |
|||
|
MPDW0914-472K |
4700 |
45 |
5.75 |
45 |
0.61 |
252KHZ |
|||
|
MPDW0914-562K |
5600 |
50 |
7.52 |
45 |
0.58 |
|
|||
|
MPDW0914-682K |
6800 |
40 |
8.66 |
36 |
0.54 |
252KHZ |
|||
|
MPDW0914-822K |
8200 |
40 |
9.35 |
36 |
0.51 |
252KHZ |
|||
|
MPDW0914-103K |
10000 |
70 |
15.9 |
34 |
0.40 |
79.6KHZ |
|||
|
MPDW0914-123K |
12000 |
70 |
18.2 |
34 |
0.38 |
79.6KHZ |
|||
|
MPDW0914-153K |
15000 |
70 |
20.6 |
32 |
0.35 |
79.6KHZ |
|||
|
MPDW0914-183K |
18000 |
65 |
23.3 |
31 |
0.31 |
79.6KHZ |
|||
|
MPDW0914-223K |
22000 |
60 |
26.9 |
28 |
0.30 |
79.6KHZ |
|||
|
MPDW0914-273K |
27000 |
55 |
37.0 |
27 |
0.24 |
79.6KHZ |
|||
|
MPDW0914-333K |
33000 |
55 |
43.2 |
25 |
0.23 |
79.6KHZ |
|||
|
MPDW0914-393K |
39000 |
55 |
47.9 |
23 |
0.20 |
79.6KHZ |
|||
|
MPDW0914-473K |
47000 |
55 |
54.0 |
22 |
0.20 |
79.6KHZ |
|||
|
MPDW0914-563K |
56000 |
50 |
70.4 |
21 |
0.18 |
79.6KHZ |
|||
|
MPDW0914-683K |
68000 |
45 |
79.0 |
20 |
0.17 |
79.6KHZ |
|||
|
MPDW0914-823K |
82000 |
35 |
103.6 |
20 |
0.14 |
79.6KHZ |
|||
|
MPDW0914-104K |
100000 |
35 |
111.0 |
19 |
0.13 |
79.6KHZ |
MPDW1124 SERIES
|
Part Number 品名. |
Impedance (uh) 電感值 |
DCR(max) (Ω) 直流阻抗 |
Rated Current(A)額定電流 |
|
|
△L/L=-10%(max) |
△T=40℃(max) |
|||
|
MPDW1124-100K |
10 |
0.025 |
8.00 |
5.80 |
|
MPDW1124-120K |
12 |
0.028 |
7.50 |
5.40 |
|
MPDW1124-150K |
15 |
0.032 |
6.80 |
5.20 |
|
MPDW1124-180K |
18 |
0.035 |
6.30 |
5.00 |
|
MPDW1124-220K |
22 |
0.040 |
5.60 |
4.30 |
|
MPDW1124-270K |
27 |
0.048 |
5.00 |
4.00 |
|
MPDW1124-330K |
33 |
0.055 |
4.50 |
3.80 |
|
MPDW1124-390K |
39 |
0.060 |
4.30 |
3.50 |
|
MPDW1124-470K |
47 |
0.075 |
3.80 |
2.80 |
|
MPDW1124-560K |
56 |
0.085 |
3.50 |
2.60 |
|
MPDW1124-680K |
68 |
0.095 |
3.10 |
2.50 |
|
MPDW1124-820K |
82 |
0.10 |
2.85 |
2.40 |
|
MPDW1124-101K |
100 |
0.13 |
2.60 |
2.20 |
|
MPDW1124-121K |
120 |
0.16 |
2.30 |
2.00 |
|
MPDW1124-151K |
150 |
0.17 |
2.15 |
1.80 |
|
MPDW1124-181K |
180 |
0.19 |
2.00 |
1.70 |
|
MPDW1124-221K |
220 |
0.25 |
1.85 |
1.60 |
|
MPDW1124-271K |
270 |
0.28 |
1.60 |
1.50 |
|
MPDW1124-331K |
330 |
0.32 |
1.45 |
1.40 |
|
MPDW1124-391K |
390 |
0.36 |
1.35 |
1.30 |
|
MPDW1124-471K |
470 |
0.48 |
1.20 |
1.10 |
|
MPDW1124-561K |
560 |
0.53 |
1.10 |
1.00 |
|
MPDW1124-681K |
680 |
0.60 |
1.05 |
0.95 |
|
MPDW1124-821K |
820 |
0.80 |
0.95 |
0.88 |
|
MPDW1124-102K |
1000 |
0.90 |
0.85 |
0.80 |
|
MPDW1124-122K |
1200 |
1.20 |
0.75 |
0.70 |
|
MPDW1124-152K |
1500 |
1.40 |
0.70 |
0.64 |
|
MPDW1124-182K |
1800 |
1.80 |
0.65 |
0.58 |
|
MPDW1124-222K |
2200 |
2.05 |
0.58 |
0.54 |
|
MPDW1124-272K |
2700 |
2.60 |
0.52 |
0.47 |
|
MPDW1124-332K |
3300 |
2.95 |
0.46 |
0.45 |
|
MPDW1124-392K |
3900 |
3.60 |
0.42 |
0.40 |
|
MPDW1124-472K |
4700 |
4.10 |
0.38 |
0.37 |
|
MPDW1124-562K |
5600 |
5.10 |
0.34 |
0.33 |
|
MPDW1124-682K |
6800 |
5.90 |
0.30 |
0.30 |
|
MPDW1124-822K |
8200 |
7.50 |
0.26 |
0.27 |
|
MPDW1124-103K |
10000 |
9.50 |
0.24 |
0.24 |
| 分享到： |
