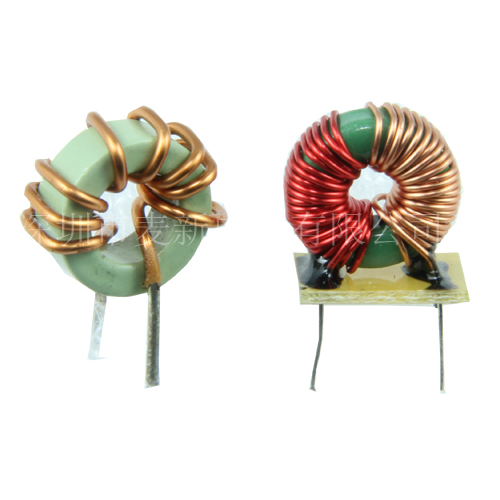

產品名稱：MTCD系列 產品編號：112435-493 產品型號：磁環線圈 公司名稱：深圳市麥新(MT)電子有限公司
|
點擊查看大圖 ↑ |
MTC TYPE

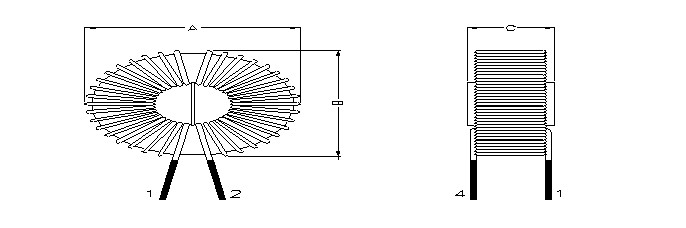

0External dimensions (unit : mm)（外觀尺寸
|
PART N0. |
A |
B |
C |
|
MTC16128 |
22Max |
20.5Max |
15Max |
|
MTC251512 |
33Max |
31.5Max |
21Max |
0PART NUMBERING SYSTEM （品名系統）
MTC 16128 - 100 口 B
1 2 3 4 5
1 Series Name 品名 麥新磁環料號.
2 Dimensions 尺寸 外圍X高度
3 Inductance 電感值 前兩位為有效數字,第三位表0的個數, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包裝方式 C: Tape& Reel (卷裝) B: In Bulk (散裝/袋裝)
0FEATURES (特性)
Eliminate noise of ultrasonic equipment.
High dielectric strength due to division structure .television set notebook PC, portable communication
于超聲波儀器中隔絕干擾。
分隔兩組的結構形成高電介質強度。
0APPLICATION(應用)
Absorption of noise /interference waves in different electrical appliances
于各類電子/電器產品作吸收雜訊/干擾之用
|
PART N0. |
Inductance (mH) Min. |
DC Resistance (Ω)Max. |
Rated AC Current (A) Max. |
|
MTC16128-102 |
1.0 |
0.05 |
3.0 |
|
MTC16128-182 |
1.8 |
0.6 |
2.5 |
|
MTC16128-222 |
2.2 |
0.08 |
2.0 |
|
MTC16128-352 |
3.5 |
0.12 |
1.5 |
|
MTC16128-502 |
5.0 |
0.2 |
1.0 |
|
MTC16128-163 |
16 |
0.5 |
0.8 |
|
MTC16128-193 |
19 |
0.8 |
0.5 |
|
MTC16128-253 |
25 |
1.0 |
0.4 |
|
MTC16128-403 |
40 |
1.6 |
0.3 |
|
MTC251512-402 |
4 |
0.06 |
4.5 |
|
MTC251512-802 |
8 |
0.08 |
4.0 |
|
MTC251512-103 |
10 |
0.09 |
3.5 |
|
MTC251512-133 |
13 |
0.12 |
3.0 |
|
MTC251512-153 |
15 |
0.15 |
2.5 |
|
MTC251512-443 |
44 |
0.3 |
2.0 |
|
MTC251512-853 |
85 |
0.6 |
1.5 |
|
MTC251512-204 |
200 |
1.5 |
1.0 |
MTC TYPE
0External dimensions (unit : mm)（外觀尺寸
0PART NUMBERING SYSTEM （品名系統）
MTC 4426 - 100 口 B
1 2 3 4 5
1 Series Name 品名 麥新磁環料號.
2 Dimensions 尺寸 外圍X高度
3 Inductance 電感值 前兩位為有效數字,第三位表0的個數, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包裝方式 C: Tape& Reel (卷裝) B: In Bulk (散裝/袋裝)
0FEATURES (特性)
High power，high current and high impedance.
Useful in wide variety of power conversion
高功率，大電流，高阻抗
可用于不同的功率產品上
|
PART N0. |
Inductance (u H) Min. |
DC Resistance (Ω)Max. |
Rated AC Current (A) Max. |

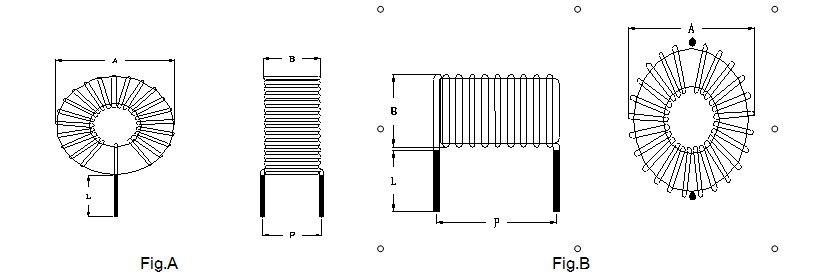

Dimension（mm） |
Fig |
|||
|
A Max |
B Max |
C Max |
P |
|
||||
|
MTC4426-150M |
15 |
30 |
2.0 |
15 |
7.5 |
10 |
6.0 |
A |
|
MTC4426H-680M |
68 |
65 |
2.0 |
15 |
7.5 |
10 |
13 |
B |
|
MTC5026-200M |
20 |
27 |
3.0 |
16.5 |
8.0 |
10 |
6.5 |
A |
|
MTC5026-600M |
60 |
54 |
3.0 |
16.5 |
9.0 |
10 |
8.0 |
A |
|
MTC5026H-101M |
100 |
90 |
2.0 |
16.5 |
9.5 |
10 |
15.5 |
B |
|
MTC6026-220M |
22 |
18 |
5.0 |
19.5 |
10 |
10 |
8.0 |
A |
|
MTC6026-900M |
90 |
46 |
3.0 |
19.5 |
10.5 |
10 |
8.0 |
A |
|
MTC6026H-131M |
130 |
114 |
1.0 |
19.5 |
10.5 |
10 |
17 |
B |
|
MTC6826-250M |
25 |
15 |
5.0 |
23.5 |
12 |
10 |
10 |
A |
|
MTC6826-131M |
130 |
63 |
3.0 |
23.5 |
11 |
10 |
9.0 |
A |
|
MTC6826H-231M |
230 |
85 |
2.0 |
23.5 |
11 |
10 |
21 |
B |
|
MTC8026-500M |
50 |
19 |
5.0 |
25.5 |
13 |
10 |
9.0 |
A |
|
MTC8026-101M |
100 |
28 |
5.0 |
25.5 |
13 |
10 |
11 |
A |
|
MTC8026-102M |
1000 |
380 |
1.0 |
25.5 |
13 |
10 |
24 |
B |
|
MTC9026-900M |
90 |
26 |
5.0 |
31 |
17 |
10 |
15 |
A |
|
MTC9026-321M |
320 |
80 |
5.0 |
31 |
17 |
10 |
14 |
A |
|
MTC9026H-471M |
470 |
130 |
3.0 |
31 |
16 |
10 |
28.5 |
B |
|
MTC9426-820M |
82 |
28 |
5.0 |
31 |
15 |
10 |
11.5 |
A |
|
MTC9426-101M |
100 |
33 |
4.0 |
31 |
15 |
10 |
11.5 |
A |
|
MTC9426H-391M |
390 |
71 |
4.0 |
31 |
15 |
10 |
29 |
B |
|
MTC10626-300M |
30 |
12 |
10.0 |
34 |
16.5 |
10 |
15 |
A |
|
MTC10626-820M |
82 |
19.5 |
7.0 |
34 |
18 |
10 |
16 |
A |
|
MTC10626H-101M |
100 |
32 |
5.0 |
34 |
18 |
10 |
30.5 |
B |
|
MTC13026-750M |
75 |
12 |
10.0 |
39.5 |
19 |
10 |
15 |
A |
|
MTC13026-471M |
470 |
65 |
7.0 |
39.5 |
19 |
10 |
15 |
A |
|
MTC13026H-681M |
680 |
81 |
5.0 |
42 |
19.5 |
10 |
41 |
B |
