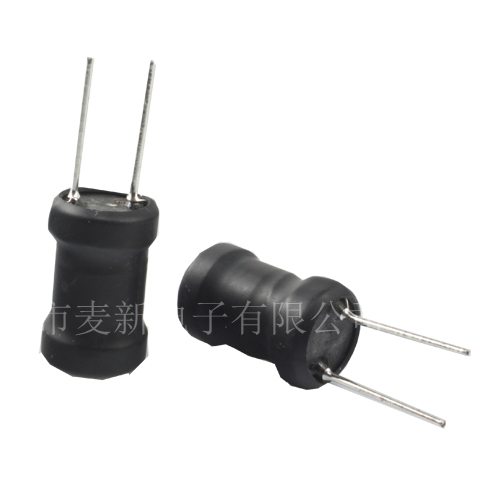

產品名稱：MPD系列 產品編號：112614-160 產品型號：工字插件電感 公司名稱：深圳市麥新(MT)電子有限公司
|
點擊查看大圖 ↑ |

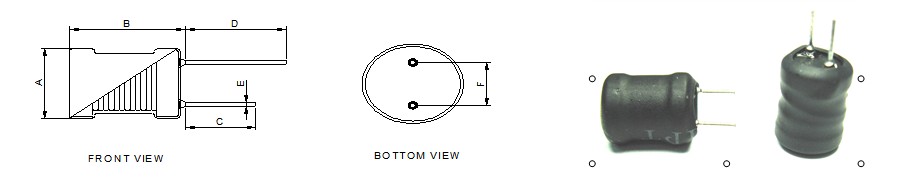

0External dimensions (unit : mm)（外觀尺寸）
|
PART NO. |
A |
B |
C(Ref) |
D(Ref) |
E(Ref) |
F(Ref) |
|
MPD0304 |
3.5±0.5 |
6.0±1 |
10 |
15 |
0.5 |
1.3 |
|
MPD0406 |
4.5±0.5 |
7.0±1 |
10 |
15 |
0.6 |
2.0 |
|
MPD0507 |
5.5±0.5 |
9.0±1 |
10 |
15 |
0.6 |
2.5 |
|
MPD0608 |
6.5±1.0 |
10.0±1 |
10 |
15 |
0.6 |
3.0 |
|
MPD0810 |
8.5±1.0 |
12.0±1 |
10 |
15 |
0.6 |
5.0 |
|
MPD0912 |
9.5±1.0 |
14.0±1 |
10 |
15 |
0.6 |
5.0 |
0PART NUMBERING SYSTEM （品名系統）
MPD 0608 - 150 K - U - B
1 2 3 4 5 6
1 Series Name 品名 指麥新立式電感.
2 Dimensions 尺寸 外圍X高度
3 Inductance 電感值 前兩位為有效數字,第三位表0的個數, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Tube 套管 Pvc sleeve or ul tube
6 Packing code 包裝方式 C: Tape& Reel (卷裝) B: In Bulk (散裝/袋裝)
0FEATURES (特性)
Contain high-frequency ferrite. Compararively large rated current .
Taping is alse available which can be used in automated mounting lines.
0APPLICATION (用途)
Power supplies, DC-DC converters ,TVs,VTRs ,Comprters, Computer Peripherals,
Telephones,Air-Conditions, Home Electric Appliance etc.
使用于電源,DC-DC轉換器,TVs, VTRs, 計算機及其外圍設備，電話，空調，家用電器等。
PD TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MPD0304 |
MPD0406 |
MPD0507 |
|||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
1R0 |
1.0 |
0.10 |
1000 |
0.10 |
1400 |
0.014 |
3500 |
|
1R2 |
1.2 |
0.10 |
1000 |
0.12 |
1200 |
|
|
|
1R5 |
1.5 |
0.10 |
900 |
0.15 |
1200 |
0.02 |
3000 |
|
1R8 |
1.8 |
0.10 |
800 |
0.17 |
1100 |
|
|
|
2R2 |
2.2 |
0.10 |
700 |
0.20 |
1100 |
0.02 |
2500 |
|
2R7 |
2.7 |
0.20 |
700 |
0.20 |
1300 |
|
|
|
3R3 |
3.3 |
0.20 |
650 |
0.22 |
1300 |
0.03 |
2000 |
|
3R9 |
3.9 |
0.20 |
500 |
0.24 |
1300 |
|
|
|
4R7 |
4.7 |
0.30 |
450 |
0.26 |
800 |
0.04 |
1700 |
|
5R6 |
5.6 |
0.30 |
400 |
0.28 |
800 |
|
|
|
6R8 |
6.8 |
0.30 |
350 |
0.30 |
800 |
0.06 |
1300 |
|
8R2 |
8.2 |
0.40 |
350 |
0.35 |
800 |
|
|
|
100 |
10 |
0.50 |
300 |
0.46 |
700 |
0.08 |
1000 |
|
120 |
12 |
0.60 |
300 |
0.48 |
600 |
0.10 |
950 |
|
150 |
15 |
0.60 |
300 |
0.55 |
600 |
0.11 |
900 |
|
180 |
18 |
0.70 |
290 |
0.65 |
500 |
0.11 |
800 |
|
220 |
22 |
0.80 |
270 |
0.72 |
500 |
0.12 |
700 |
|
270 |
27 |
0.90 |
270 |
0.78 |
400 |
0.14 |
600 |
|
330 |
33 |
2.00 |
260 |
0.87 |
400 |
0.16 |
550 |
|
390 |
39 |
2.00 |
250 |
0.90 |
400 |
0.18 |
500 |
|
470 |
47 |
3.00 |
180 |
0.98 |
400 |
0.20 |
500 |
|
560 |
56 |
3.00 |
170 |
1.50 |
320 |
0.22 |
450 |
|
680 |
68 |
3.00 |
170 |
1.90 |
300 |
0.30 |
450 |
|
820 |
82 |
4.00 |
160 |
2.50 |
300 |
0.34 |
400 |
|
101 |
100 |
4.00 |
150 |
3.00 |
200 |
0.36 |
400 |
|
121 |
120 |
4.00 |
150 |
3.80 |
200 |
0.44 |
350 |
|
151 |
150 |
5.00 |
130 |
4.50 |
200 |
0.52 |
300 |
|
181 |
180 |
5.00 |
130 |
5.00 |
200 |
0.65 |
300 |
|
221 |
220 |
8.00 |
100 |
5.80 |
200 |
0.75 |
250 |
|
271 |
270 |
9.00 |
90 |
6.50 |
150 |
0.10 |
240 |
|
331 |
330 |
10.0 |
90 |
7.00 |
150 |
1.3 |
200 |
|
391 |
390 |
10.0 |
80 |
7.70 |
150 |
1.4 |
180 |
|
471 |
470 |
11.0 |
80 |
8.00 |
120 |
1.6 |
160 |
|
561 |
560 |
15.0 |
70 |
8.50 |
120 |
2.0 |
160 |
|
681 |
680 |
23.0 |
50 |
9.50 |
120 |
2.3 |
140 |
|
821 |
820 |
26.0 |
50 |
15 |
100 |
2.7 |
130 |
Measuring Freq: 1KHZ/0.3V
LTolerance: 1.0-8.2 uH ±20%; 10uH以上±10%；(包含10uH)
Isat:The current when the inductance becomes 10% lower than its nomi
PD TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MPD0304 |
MPD0406 |
MPD0507 |
|||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
102 |
1000 |
29.00 |
50 |
17 |
100 |
3.1 |
120 |
|
122 |
1200 |
33.0 |
40 |
20 |
80 |
4.6 |
110 |
|
152 |
1500 |
37.0 |
40 |
22 |
80 |
5.3 |
100 |
|
182 |
1800 |
41.0 |
40 |
25 |
70 |
6.2 |
90 |
|
222 |
2200 |
46.0 |
30 |
26 |
60 |
6.8 |
80 |
|
272 |
2700 |
51.0 |
30 |
46 |
40 |
10 |
60 |
|
332 |
3300 |
|
|
50 |
30 |
12 |
60 |
|
392 |
3900 |
|
|
54 |
30 |
13 |
55 |
|
472 |
4700 |
|
|
60 |
30 |
15 |
55 |
|
562 |
5600 |
|
|
65 |
30 |
22 |
50 |
|
682 |
6800 |
|
|
72 |
30 |
25 |
45 |
|
822 |
8200 |
|
|
80 |
20 |
28 |
45 |
|
103 |
10000 |
|
|
95 |
10 |
35 |
35 |
|
123 |
12000 |
|
|
|
|
45 |
30 |
|
153 |
15000 |
|
|
|
|
52 |
30 |
|
183 |
18000 |
|
|
|
|
58 |
30 |
|
223 |
22000 |
|
|
|
|
80 |
20 |
|
273 |
27000 |
|
|
|
|
90 |
20 |
|
333 |
33000 |
|
|
|
|
135 |
15 |
|
393 |
39000 |
|
|
|
|
150 |
15 |
|
473 |
47000 |
|
|
|
|
170 |
15 |
Measuring Freq: 1KHZ/0.3V
LTolerance: 1.0-8.2 uH ±20%; 10uH以上±10%；(包含10uH)
Isat:The current when the inductance becomes 10% lower than its nominal value.(ta=20℃)
PD TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MPD0608 |
MPD0810 |
MPD0912 |
|||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
1R0 |
1.0 |
|
|
0.02 |
3400 |
|
|
|
1R2 |
1.2 |
|
|
0.02 |
3400 |
|
|
|
1R5 |
1.5 |
|
|
0.02 |
3400 |
|
|
|
1R8 |
1.8 |
|
|
0.03 |
3300 |
|
|
|
2R2 |
2.2 |
|
|
0.03 |
3000 |
|
|
|
2R7 |
2.7 |
|
|
0.04 |
3000 |
|
|
|
3R3 |
3.3 |
|
|
0.04 |
3000 |
|
|
|
3R9 |
3.9 |
|
|
0.05 |
2900 |
|
|
|
4R7 |
4.7 |
|
|
0.05 |
2900 |
|
|
|
5R6 |
5.6 |
|
|
0.06 |
2600 |
|
|
|
6R8 |
6.8 |
|
|
0.06 |
2500 |
|
|
|
8R2 |
8.2 |
|
|
0.06 |
2000 |
|
|
|
100 |
10 |
0.09 |
1300 |
0.10 |
1600 |
0.04 |
2800 |
|
120 |
12 |
0.10 |
1100 |
0.10 |
1400 |
0.04 |
2700 |
|
150 |
15 |
0.11 |
1050 |
0.10 |
1300 |
0.05 |
2300 |
|
180 |
18 |
0.12 |
1000 |
0.11 |
1200 |
0.06 |
2100 |
|
220 |
22 |
0.12 |
960 |
0.13 |
1100 |
0.07 |
2000 |
|
270 |
27 |
0.17 |
920 |
0.14 |
1000 |
0.10 |
1700 |
|
330 |
33 |
0.19 |
880 |
0.16 |
900 |
0.12 |
1500 |
|
390 |
39 |
0.22 |
860 |
0.16 |
800 |
0.12 |
1400 |
|
470 |
47 |
0.23 |
830 |
0.16 |
700 |
0.13 |
1300 |
|
560 |
56 |
0.29 |
810 |
0.22 |
700 |
0.14 |
1200 |
|
680 |
68 |
0.37 |
750 |
0.23 |
600 |
0.15 |
1000 |
|
820 |
82 |
0.39 |
740 |
0.27 |
500 |
0.16 |
900 |
|
101 |
100 |
0.44 |
710 |
0.29 |
400 |
0.25 |
700 |
|
121 |
120 |
0.64 |
680 |
0.33 |
400 |
0.28 |
700 |
|
151 |
150 |
0.73 |
600 |
0.46 |
350 |
0.32 |
700 |
|
181 |
180 |
0.83 |
540 |
0.51 |
350 |
0.47 |
600 |
|
221 |
220 |
0.92 |
450 |
0.62 |
300 |
0.53 |
500 |
|
271 |
270 |
1.3 |
420 |
0.65 |
250 |
0.60 |
450 |
|
331 |
330 |
1.5 |
400 |
0.79 |
250 |
0.85 |
400 |
|
391 |
390 |
1.8 |
370 |
0.91 |
200 |
0.95 |
350 |
|
471 |
470 |
2.3 |
340 |
1.2 |
180 |
1.1 |
350 |
|
561 |
560 |
3.0 |
280 |
1.2 |
160 |
1.2 |
300 |
|
681 |
680 |
3.25 |
250 |
1.5 |
140 |
1.3 |
250 |
|
821 |
820 |
4.16 |
230 |
1.7 |
140 |
1.4 |
200 |
Measuring Freq: 1KHZ/0.3V
LTolerance: 1.0-8.2 uH ±20%; 10uH以上±10%；(包含10uH)
Isat:The current when the inductance becomes 10% lower than its nominal value.(ta=20℃)
PD TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MPD0608 |
MPD0810 |
MPD0912 |
|||
|
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
DCR (Ω) Max |
Isat (mA) |
||
|
102 |
1000 |
4.55 |
210 |
2.0 |
120 |
2.0 |
200 |
|
122 |
1200 |
5.20 |
200 |
2.3 |
100 |
2.3 |
180 |
|
152 |
1500 |
7.54 |
180 |
2.9 |
80 |
2.9 |
150 |
|
182 |
1800 |
7.54 |
160 |
3.5 |
80 |
3.3 |
120 |
|
222 |
2200 |
8.32 |
150 |
4.2 |
70 |
4.5 |
110 |
|
272 |
2700 |
9.62 |
130 |
5.1 |
60 |
5.5 |
90 |
|
332 |
3300 |
10.92 |
130 |
6.1 |
60 |
5.7 |
80 |
|
392 |
3900 |
16.12 |
100 |
7.8 |
50 |
6.5 |
80 |
|
472 |
4700 |
17.81 |
85 |
11 |
50 |
7.2 |
60 |
|
562 |
5600 |
20.0 |
70 |
11 |
45 |
9.5 |
50 |
|
682 |
6800 |
27.3 |
65 |
14 |
45 |
11 |
50 |
|
822 |
8200 |
31.2 |
60 |
15 |
40 |
13 |
50 |
|
103 |
10000 |
39.0 |
58 |
20 |
35 |
16 |
40 |
|
123 |
12000 |
42.9 |
56 |
24 |
35 |
18 |
40 |
|
153 |
15000 |
65.0 |
53 |
28 |
35 |
21 |
40 |
|
183 |
18000 |
72.8 |
50 |
42 |
30 |
23 |
40 |
|
223 |
22000 |
82.55 |
46 |
43 |
30 |
33 |
35 |
|
273 |
27000 |
95.42 |
42 |
55 |
25 |
37 |
35 |
|
333 |
33000 |
135.2 |
38 |
65 |
25 |
42 |
35 |
|
393 |
39000 |
154.7 |
37 |
87 |
25 |
45 |
30 |
|
473 |
47000 |
172.9 |
35 |
98 |
25 |
52 |
30 |
|
563 |
56000 |
|
|
128 |
20 |
|
|
|
683 |
68000 |
|
|
141 |
20 |
|
|
|
823 |
82000 |
|
|
161 |
20 |
|
|
|
104 |
100000 |
|
|
180 |
20 |
|
|
Measuring Freq: 1KHZ/0.3V
LTolerance: 1.0-8.2 uH ±20%; 10uH以上±10%；(包含10uH)
Isat:The current when the inductance becomes 10% lower than its nominal value.(ta=20℃）
