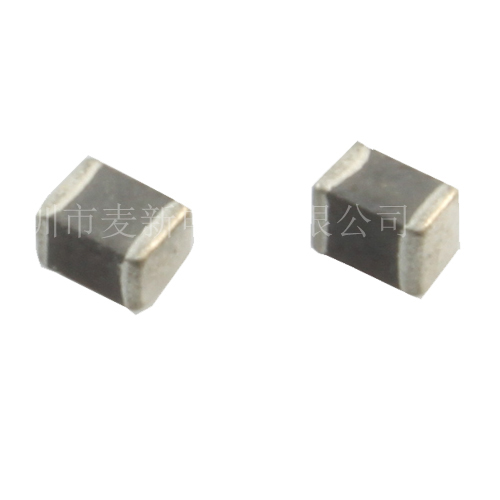

產品名稱：MTB系列 產品編號：113120-613 產品型號：疊層磁珠 公司名稱：深圳市麥新(MT)電子有限公司
|
點擊查看大圖 ↑ |
MTB TYPE

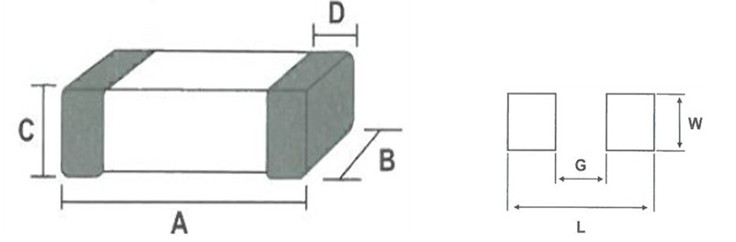

0External dimensions (unit : mm)（外觀尺寸
.jpg)
|
PART N0. |
A |
B |
C |
D |
L |
W |
G |
|
MTB100505 |
1.0±0.1 (0.040±0.004) |
0.5±0.1 (0.020±0.004) |
0.5±0.1 (0.020±0.004) |
0.25±0.15 (0.010±0.006) |
2.2 (0.086) |
0.7 (0.028) |
0.4 (0.016) |
|
MTB160808 |
1.6±0.2 (0.063±0.008) |
0.8±0.2 (0.031±0.008) |
0.8±0.2 (0.031±0.008) |
0.3±0.2 (0.012±0.008) |
2.8 (0.110) |
1.0 (0.039) |
0.6 (0.024) |
|
MTB201209 |
2.0±0.2 (0.079±0.008) |
1.2±0.2 (0.047±0.008) |
0.9±0.2 (0.035±0.008) |
0.5±0.3 (0.020±0.012) |
3.2 (0.126) |
1.5 (0.059) |
0.6 (0.024) |
|
MTB321611 |
3.0±0.2 (0.126±0.008) |
1.6±0.2 (0.063±0.008) |
1.1±0.2 (0.043±0.008) |
0.5±0.3 (0.020±0.012) |
4.4 (0.173) |
1.8 (0.071) |
1.2 (0.047) |
|
MTB451616 |
4.5±0.2 (0.177±0.008) |
1.6±0.2 (0.063±0.008) |
1.6±0.2 (0.063±0.008) |
0.5±0.3 (0.020±0.012) |
5.8 (0.228) |
1.8 (0.071) |
2.0 (0.079) |
0PART NUMBERING SYSTEM （品名系統）
MTB 100505 - 221 口 B
1 2 3 4 5
1 Series Name 品名 麥新磁珠料號.
2 Dimensions 尺寸 長X寬X高
3 Impedance 阻抗值 前兩位為有效數字,第三位表0的個數, 600:60Ω 601 :600Ω.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包裝方式 T: Tape& Reel (卷裝) B: In Bulk (散裝/袋裝)
0FEATURES (特性)
1.Under the same size,the multilayer chip beads produce higher impedance than plug-in beads.
2.These CBG series have substantial EML.RFl suppression by simply mounting them onto PCB.
3.Suitable ElA standard in shape and dimension of chip beads;Can be mounted automatically by SMT epuipments.
0APPLICATION(應用)
Computers and peripheral devices,personal,computers,VCR and cameras
Noise suppression in digital epuipment,such as car stereo,car engines controllers and OA
electronic instruments.
COommunication equipment
用于數據傳輸線,信號線,電源部分及回路的抗干擾.
MTB100505/MTB160808 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB100505U300 |
30±25% |
0.30 |
500 |
|
MTB100505U600 |
60±25% |
0.40 |
200 |
|
MTB100505U121 |
120±25% |
0.50 |
200 |
|
MTB100505U221 |
220±25% |
0.70 |
100 |
|
MTB100505U301 |
300±25% |
0.80 |
100 |
|
MTB100505U451 |
450±25% |
0.90 |
100 |
|
MTB100505U601 |
600±25% |
1.00 |
100 |
|
MTB100505U102 |
1000±25% |
1.50 |
50 |
|
MTB100505Z300 |
30±25% |
0.30 |
500 |
|
MTB100505Z221 |
220±25% |
0.70 |
100 |
|
MTB100505Z601 |
600±25% |
1.00 |
100 |
|
MTB100505G600 |
60±25% |
0.40 |
200 |
|
MTB100505G301 |
300±25% |
0.80 |
100 |
|
MTB100505G451 |
450±25% |
0.90 |
100 |
|
MTB100505B300 |
30±25% |
0.40 |
200 |
|
MTB100505B121 |
120±25% |
0.70 |
100 |
|
MTB100505B301 |
300±25% |
1.00 |
100 |
|
MTB160808Z600 |
60±25% |
0.20 |
300 |
|
MTB160808Z800 |
80±25% |
0.20 |
300 |
|
MTB160808Z121 |
120±25% |
0.20 |
200 |
|
MTB160808Z221 |
220±25% |
0.20 |
200 |
|
MTB160808Z301 |
300±25% |
0.35 |
200 |
|
MTB160808Z451 |
450±25% |
0.40 |
250 |
|
MTB160808Z601 |
600±25% |
0.45 |
200 |
|
MTB160808Z102 |
1000±25% |
0.60 |
100 |
|
MTB160808U600 |
60±25% |
0.20 |
300 |
|
MTB160808U221 |
220±25% |
0.20 |
200 |
|
MTB160808U102 |
1000±25% |
0.60 |
100 |
|
MTB160808G800 |
80±25% |
0.20 |
300 |
|
MTB160808G301 |
300±25% |
0.35 |
200 |
|
MTB160808G102 |
1000±25% |
0.60 |
100 |
|
MTB160808G202 |
2000±25% |
0.80 |
50 |
|
MTB160808B400 |
40±25% |
0.30 |
300 |
|
MTB160808B181 |
180±25% |
0.35 |
200 |
|
MTB160808B301 |
300±25% |
0.45 |
200 |
|
MTB160808B601 |
600±25% |
0.65 |
200 |
|
MTB160808L150 |
15±25% |
0.30 |
200 |
|
MTB160808L300 |
30±25% |
0.30 |
200 |
|
MTB160808L600 |
60±25% |
0.30 |
200 |
|
MTB160808L121 |
120±25% |
0.40 |
150 |
MTB201209 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB201209Z100 |
10±25% |
0.15 |
600 |
|
MTB201209Z800 |
80±25% |
0.15 |
300 |
|
MTB201209Z221 |
220±25% |
0.30 |
200 |
|
MTB201209Z501 |
500±25% |
0.30 |
200 |
|
MTB201209U800 |
80±25% |
0.15 |
300 |
|
MTB201209U121 |
120±25% |
0.25 |
300 |
|
MTB201209U151 |
150±25% |
0.25 |
300 |
|
MTB201209U221 |
220±25% |
0.30 |
200 |
|
MTB201209U301 |
300±25% |
0.30 |
200 |
|
MTB201209U501 |
500±25% |
0.30 |
200 |
|
MTB201209U601 |
600±25% |
0.35 |
200 |
|
MTB201209U102 |
1000±25% |
0.45 |
200 |
|
MTB201209G221 |
220±25% |
0.30 |
200 |
|
MTB201209G601 |
600±25% |
0.35 |
200 |
|
MTB201209G152 |
1500±25% |
0.55 |
200 |
|
MTB201209G202 |
2000±25% |
0.60 |
200 |
|
MTB20120PB400 |
40±25% |
0.20 |
300 |
|
MTB20120PB121 |
120±25% |
0.25 |
200 |
|
MTB20120PB102 |
1000±25% |
0.60 |
200 |
MTB321611 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB321611Z151 |
150±25% |
0.30 |
300 |
|
MTB321611Z202 |
2000±25% (at 30MHz) |
0.60 |
100 |
|
MTB321611U151 |
150±25% |
0.30 |
300 |
|
MTB321611U301 |
300±25% |
0.30 |
300 |
|
MTB321611U601 |
600±25% |
0.30 |
200 |
|
MTB321611U122 |
1200±25% (at 30MHZ) |
0.50 |
100 |
|
MTB321611U202 |
2000±25% (at 30MHZ) |
0.60 |
100 |
|
MTB321611G301 |
300±25% |
0.30 |
300 |
|
MTB321611G601 |
600±25 |
0.30 |
200 |
MTB451616 Type
|
PART N0. |
Impedance (Ω) At 100MHz |
DC Resistance (Ω)Max. |
Rated Current (mA) Max. |
|
MTB451616Z151 |
150±25% |
0.30 |
300 |
|
MTB451616U600 |
60±25% |
0.10 |
500 |
