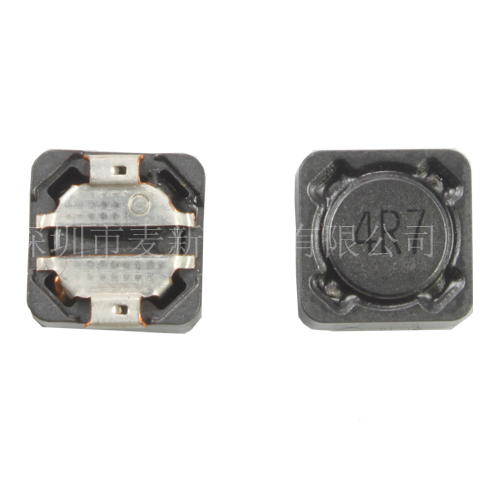

產品名稱：MDRH系列 產品編號：114447-101 產品型號：SUMIDA系列電感 公司名稱：深圳市麥新(MT)電子有限公司
|
點擊查看大圖 ↑ |
MDRH TYPE
0External dimensions (unit : mm)（外觀尺寸
|
PART |
NO. |
A±0.5 |
B±0.3 |
C（Max） |
D(Ref) |
E(Ref) |
F(Ref) |
|
MDRH63 |
6.2 |
6.6 |
3.0 |
1.5 |
6.6 |
5.9 |
1 |
|
MDRH65 |
6.2 |
6.6 |
5.0 |
1.5 |
6.6 |
5.9 |
1 |
|
MDRH73 |
7.3 |
7.3 |
3.5 |
1.8 |
7.2 |
5.4 |
2 |
|
MDRH74 |
7.3 |
7.3 |
4.5 |
1.8 |
7.2 |
5.4 |
2 |
|
MDRH105 |
10.0 |
10.0 |
5.0 |
3 |
9.6 |
7.6 |
3 |
|
MDRH124 |
12.0 |
12.0 |
4.5 |
5 |
11.8 |
7.6 |
3 |
|
MDRH125 |
12.0 |
12.0 |
6.0 |
5 |
11.8 |
7.6 |
3 |
|
MDRH127 |
12.0 |
12.0 |
8.0 |
5 |
12 |
7.6 |
3 |
0PART NUMBERING SYSTEM （品名系統）
MDRH 125 - 100 N - C
1 2 3 4 5
1 Series Name 品名 麥新電感料號.
2 Dimensions 尺寸 外圍X高度
3 Inductance 電感值 前兩位為有效數字,第三位表0的個數, 150:15 uH. 151 :150uH.
4 Tolerance 公差 J: ±5%, K: ±10%, L: ±15%, M: ±20%, P: ±25%, N: ±30%
5 Packing code 包裝方式 C: Tape&Reel (卷裝) B: In Bulk (散裝/袋裝)
0FEATURES (特性)
Various high power inductors are superior to be high saturation.
Small product, carrier tape packing .Use for SMT
具有高功率及高的飽和電流.產品小型化,載帶包裝,可用于表面貼裝
0APPLICATION (用途)
Power supply ,for VCRS;OA equipment Digital camera, LCD television set notebook PC,
Portable communication equipments , DC/DC converters ,etc
廣泛應用于錄像機,筆記型電腦,OA儀器,數碼相機,液晶電視,小型通信設備,DC/DC轉換器等
MDRH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDRH63 |
MDRH65 |
MDRH73 |
MDRH74 |
MDRH105 |
|||||
|
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
||
|
2R9 |
2.9 |
0.057 |
1.94 |
|
|
|
|
|
|
|
|
|
4R0 |
4.0 |
0.070 |
1.63 |
|
|
|
|
|
|
|
|
|
5R5 |
5.5 |
0.085 |
1.40 |
|
|
|
|
|
|
|
|
|
100 |
10 |
0.150 |
1.10 |
0.074 |
1.35 |
0.081 |
2.24 |
0.070 |
1.84 |
0.050 |
2.40 |
|
120 |
12 |
0.176 |
1.00 |
0.094 |
1.22 |
0.114 |
1.89 |
0.078 |
1.71 |
0.054 |
2.25 |
|
150 |
15 |
0.212 |
0.90 |
0.109 |
1.11 |
0.137 |
1.75 |
0.093 |
1.47 |
0.071 |
2.0 |
|
180 |
18 |
0.270 |
0.80 |
0.143 |
1.02 |
0.155 |
1.54 |
0.122 |
1.31 |
0.081 |
1.8 |
|
220 |
22 |
0.290 |
0.74 |
0.170 |
0.91 |
0.190 |
1.47 |
0.140 |
1.23 |
0.094 |
1.65 |
|
270 |
27 |
0.360 |
0.66 |
0.208 |
0.82 |
0.210 |
1.40 |
0.183 |
1.12 |
0.110 |
1.45 |
|
330 |
33 |
0.420 |
0.59 |
0.270 |
0.74 |
0.240 |
1.23 |
0.207 |
0.96 |
0.134 |
1.35 |
|
390 |
39 |
0.510 |
0.54 |
0.300 |
0.69 |
0.320 |
1.08 |
0.250 |
0.91 |
0.148 |
1.2 |
|
470 |
47 |
0.570 |
0.50 |
0.350 |
0.62 |
0.400 |
1.0 |
0.30 |
0.88 |
0.199 |
1.1 |
|
560 |
56 |
0.720 |
0.46 |
0.430 |
0.58 |
0.490 |
0.91 |
0.36 |
0.75 |
0.233 |
1.0 |
|
680 |
68 |
0.920 |
0.42 |
0.530 |
0.56 |
0.560 |
0.84 |
0.44 |
0.69 |
0.31 |
0.93 |
|
820 |
82 |
1.010 |
0.38 |
0.58 |
0.46 |
0.690 |
0.74 |
0.48 |
0.61 |
0.36 |
0.84 |
|
101 |
100 |
1.25 |
0.34 |
0.74 |
0.42 |
0.790 |
0.70 |
0.56 |
0.60 |
0.39 |
0.76 |
|
121 |
120 |
1.40 |
0.31 |
0.81 |
0.38 |
0.980 |
0.63 |
0.70 |
0.52 |
0.47 |
0.70 |
|
151 |
150 |
1.77 |
0.28 |
0.91 |
0.35 |
1.11 |
0.58 |
0.79 |
0.46 |
0.53 |
0.63 |
|
181 |
180 |
2.04 |
0.26 |
1.14 |
0.32 |
1.45 |
0.52 |
0.96 |
0.42 |
0.68 |
0.57 |
|
221 |
220 |
2.80 |
0.23 |
1.27 |
0.29 |
1.82 |
0.48 |
1.22 |
0.36 |
0.82 |
0.52 |
|
271 |
270 |
3.21 |
0.22 |
1.65 |
0.26 |
2.19 |
0.42 |
1.51 |
0.34 |
0.92 |
0.47 |
|
331 |
330 |
4.15 |
0.19 |
2.17 |
0.23 |
2.62 |
0.39 |
1.72 |
0.32 |
1.13 |
0.43 |
|
391 |
390 |
|
|
2.47 |
0.22 |
3.33 |
0.35 |
2.11 |
0.29 |
1.39 |
0.39 |
|
471 |
470 |
|
|
2.93 |
0.20 |
3.86 |
0.32 |
2.43 |
0.26 |
1.66 |
0.36 |
|
561 |
560 |
|
|
3.47 |
0.18 |
4.30 |
0.29 |
3.16 |
0.23 |
|
|
|
681 |
680 |
|
|
4.36 |
0.17 |
5.73 |
0.19 |
3.54 |
0.22 |
|
|
|
821 |
820 |
|
|
4.77 |
0.15 |
6.54 |
0.18 |
4.49 |
0.2 |
|
|
|
102 |
1000 |
|
|
6.42 |
0.14 |
8.25 |
0.16 |
5.80 |
0.18 |
|
|
Measuring Freq: 100uH以下:100KHZ/0.25V ；100uH以上1KHZ /0.3V
IDC: The current when the inductance becomes 35% lower than its nominal value ,and temperature rise40℃△t=40℃(ta=20℃)
MDRH TYPE
Electrical Characteristics
|
STAMP |
Inductance (uH) |
MDRH124 |
MDRH125 |
MDRH127 |
|||
|
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
DCR (Ω) Max |
Isat (A) |
||
|
1R2 |
1.2 |
|
|
|
|
7m |
9.8 |
|
1R3 |
1.3 |
|
|
0.008 |
8.0 |
|
|
|
2R1 |
2.1 |
|
|
0.009 |
7.0 |
|
|
|
3R1 |
3.1 |
|
|
0.010 |
6.0 |
|
|
|
3R5 |
3.5 |
|
|
|
|
14m |
7.5 |
|
3R9 |
3.9 |
0.015 |
6.50 |
0.012 |
5.5 |
|
|
|
4R7 |
4.7 |
0.018 |
5.70 |
0.014 |
5.0 |
16m |
6.8 |
|
5R8 |
5.8 |
|
|
0.018 |
4.4 |
|
|
|
6R1 |
6.1 |
|
|
0.020 |
4.4 |
18m |
6.6 |
|
6R8 |
6.8 |
0.023 |
4.90 |
|
|
|
|
|
7R5 |
7.5 |
|
|
0.024 |
4.2 |
|
|
|
7R6 |
7.6 |
|
|
|
|
20m |
5.9 |
|
100 |
10 |
0.028 |
4.50 |
0.022 |
4 |
22m |
5.4 |
|
120 |
12 |
0.038 |
4.00 |
0.027 |
3.5 |
24m |
4.9 |
|
150 |
15 |
0.050 |
3.20 |
0.032 |
3.3 |
26m |
4.5 |
|
180 |
18 |
0.057 |
3.10 |
0.045 |
3.0 |
39m |
3.9 |
|
220 |
22 |
0.066 |
2.90 |
0.052 |
2.8 |
43m |
3.6 |
|
270 |
27 |
0.080 |
2.80 |
0.059 |
2.3 |
46m |
3.4 |
|
330 |
33 |
0.097 |
2.70 |
0.067 |
2.1 |
65m |
3.0 |
|
390 |
39 |
0.132 |
2.10 |
0.090 |
2.0 |
73m |
2.75 |
|
470 |
47 |
0.160 |
1.90 |
0.098 |
1.8 |
100m |
2.5 |
|
560 |
56 |
0.190 |
1.80 |
0.110 |
1.7 |
110m |
2.35 |
|
680 |
68 |
0.220 |
1.50 |
0.126 |
1.5 |
140m |
2.1 |
|
820 |
82 |
0.260 |
1.30 |
0.160 |
1.4 |
160m |
1.95 |
|
101 |
100 |
0.308 |
1.20 |
0.183 |
1.3 |
220m |
1.7 |
|
121 |
120 |
0.330 |
1.10 |
0.200 |
1.1 |
250m |
1.6 |
|
151 |
150 |
0.530 |
0.95 |
0.240 |
1.0 |
280m |
1.42 |
|
181 |
180 |
0.620 |
0.85 |
0.300 |
0.9 |
350m |
1.3 |
|
221 |
220 |
0.700 |
0.80 |
0.350 |
0.8 |
390m |
1.16 |
|
271 |
270 |
0.870 |
0.60 |
0.430 |
0.75 |
560m |
1.06 |
|
331 |
330 |
0.900 |
0.50 |
0.490 |
0.68 |
640m |
0.95 |
|
391 |
390 |
|
|
0.580 |
0.65 |
700m |
0.88 |
|
471 |
470 |
|
|
0.770 |
0.58 |
980m |
0.79 |
|
561 |
560 |
|
|
1.010 |
0.54 |
1.07 |
0.73 |
|
681 |
680 |
|
|
1.200 |
0.48 |
1.46 |
0.67 |
|
821 |
820 |
|
|
1.340 |
0.43 |
1.64 |
0.6 |
|
102 |
1000 |
|
|
1.530 |
0.40 |
1.82 |
0.55 |
Measuring Freq: 100uH以下:100KHZ/0.25V ；100uH以上1KHZ /0.3V
IDC: The current when the inductance becomes 35% lower than its nominal value ,and temperature rise40℃△t=40℃(ta=20℃)
| 分享到： |
