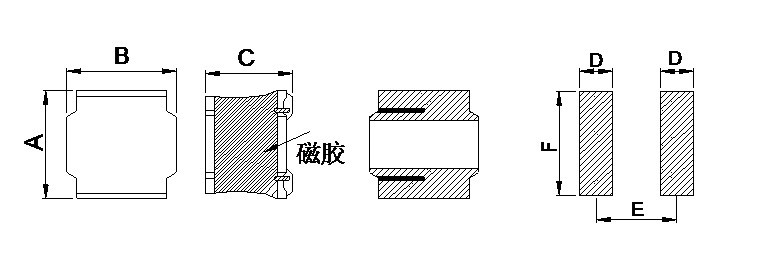

PART NO.

A

B

C(MAX)

D(Ref)

E(Ref)

F(Ref)

MNR251210

2.5±0.1

2.0±0.1

1.0

0.8

0.85

2.0

MNR251212

2.5±0.1

2.0±0.1

1.2

0.85

0.8

2.0

MNR3010

3.0±0.3

3.0±0.3

1.1

2.2

0.8

2.7

MNR3012

3.0±0.3

3.0±0.3

1.3

2.2

0.8

2.7

MNR3015

3.0±0.3

3.0±0.3

1.6

2.2

0.8

2.7

MNR4010

4.0±0.3

4.0±0.3

1.1

2.8

1.2

3.7

MNR4012

4.0±0.3

4.0±0.3

1.3

2.8

1.2

3.7

MNR4018

4.0±0.3

4.0±0.3

1.8

2.8

1.2

3.7

MNR4026

4.0±0.3

4.0±0.3

2.8

2.8

1.2

3.7

MNR6012

6.0±0.3

6.0±0.3

1.3

4.7

1.6

5.7

MNR6020

6.0±0.3

6.0±0.3

2.2

4.7

1.6

5.7

MNR6028

6.0±0.3

6.0±0.3

3.0

4.7

1.6

5.7

MNR6045

6.0±0.3

6.0±0.3

4.5

4.7

1.6

5.7

MNR8040

8.0±0.3

8.0±0.3

4.2

5.6

1.8

7.5

*0R9~6R8uH  產品高度4.2mm Max，100~101uH mm Max

PART NO.

Inductance

Tolerance

DC Resistance

Rated Current (A)

SRF

(Ω)

Isat

Irms

 (μH)

(%)

 Max.

Typ.

 Max.

Typ.

 Max.

Typ.

(MHZ)

MNR251010 TYPE

MNR252010-R47

0.47

±30

0.056

0.045

2.50

3.35

2.15

2.35

201

MNR252010-R68

0.68

±30

0.074

0.060

2.20

2.80

1.80

2.00

139

MNR252010-1R0

1.0

±30

0.108

0.090

1.85

2.25

1.50

1.65

100

MNR252010-1R5

1.5

±30

0.182

0.150

1.80

2.10

1.20

1.30

80

MNR252010-2R2

2.2

±30

0.209

0.170

1.20

1.62

1.10

1.20

60

MNR252010-3R3

3.3

±20

0.328

0.270

1.05

1.30

0.85

0.90

49

MNR252010-4R7

4.7

±20

0.564

0.469

1.00

1.18

0.65

0.70

40

MNR252010-5R6

5.6

±20

0.564

0.470

0.80

0.95

0.65

0.73

37

MNR252010-6R8

6.8

±20

0.896

0.745

0.78

0.93

0.58

0.60

32

MNR252010-100

10

±20

1.092

0.910

0.65

0.80

0.48

0.50

26

MNR251012 TYPE

MNR252012-R47

0.47

±30

0.055

0.042

3.82

4.03

2.55

3.00

161

MNR252012-R68

0.68

±30

0.068

0.057

3.28

3.43

2.25

2.70

140

MNR252012-1R0

1.0

±30

0.083

0.069

2.59

2.65

2.00

2.60

110

MNR252012-1R2

1.2

±30

0.119

0.099

2.38

2.68

1.65

2.10

99

MNR252012-1R5

1.5

±20

0.135

0.110

2.24

2.51

1.50

2.02

96

MNR252012-2R2

2.2

±20

0.198

0.165

1.85

2.05

1.20

1.64

69

MNR252012-2R7

2.7

±20

0.220

0.180

1.72

1.90

1.15

1.45

63

MNR252012-3R3

3.3

±20

0.240

0.200

1.61

1.80

1.10

1.40

61

MNR252012-4R7

4.7

±20

0.348

0.290

1.18

1.35

0.90

1.17

47

MNR252012-5R6

5.6

±20

0.490

0.405

1.15

1.26

0.78

1.04

38

MNR252012-6R2

6.2

±20

0.500

0.415

1.03

1.16

0.78

0.95

38

MNR252012-6R8

6.8

±20

0.535

0.445

0.98

1.10

0.73

0.85

37

MNR252012-8R2

8.2

±20

0.605

0.505

0.98

1.10

0.70

0.80

36

MNR252012-100

10

±20

0.640

0.535

0.79

0.84

0.65

0.77

34

MNR252012-120

12

±20

0.990

0.825

0.78

0.88

0.51

0.55

28

MNR252012-150

15

±20

1.465

1.220

0.68

0.76

0.45

0.50

25

MNR252012-220

22

±20

1.820

1.520

0.53

0.55

0.40

0.45

20

PART NO.

Inductance

Tolerance

DC Resistance

Rated Current (A)

 (μH)

(%)

Max(Ω)

Isat

Irms

MNR3010  TYPE

MNR3010-1R0□C

1.0

±30%

0.0845

1.30

1.40

MNR3010-1R5□C

1.5

±30%

0.104

1.20

1.30

MNR3010-2R2□C

2.2

±20%

0.124

1.10

1.10

MNR3010-3R3□C

3.3

±20%

0.182

0.87

0.94

MNR3010-4R7□C

4.7

±20%

0.247

0.75

0.78

MNR3010-6R8□C

6.8

±20%

0.390

0.61

0.63

MNR3010-100□C

10

±20%

0.585

0.50

0.51

MNR3010-150□C

15

±20%

0.962

0.40

0.40

MNR3010-220□C

22

±20%

1.339

0.35

0.35

MNR3010-330□C

33

±20%

2.015

0.26

0.275

MNR3010-470□C

47

±20%

2.665

0.22

0.235

MNR3012 TYPE

MNR3012-1R0□C

1.0

±30%

0.065

1.50

1.49

MNR3012-1R5□C

1.5

±30%

0.078

1.36

1.40

MNR3012-2R2□C

2.2

±20%

0.104

1.10

1.20

MNR3012-3R3□C

3.3

±20%

0.130

0.91

1.05

MNR3012-4R7□C

4.7

±20%

0.169

0.77

0.98

MNR3012-6R8□C

6.8

±20%

0.247

0.67

0.74

MNR3012-100□C

10

±20%

0.377

0.54

0.63

MNR3012-150□C

15

±20%

0.585

0.44

0.485

MNR3012-220□C

22

±20%

0.819

0.375

0.42

MNR3012-330□C

33

±20%

1.339

0.31

0.33

MNR3012-470□C

47

±20%

1.885

0.25

0.28

MNR3015 TYPE

MNR3015-1R0□C

1.0

±30%

0.039

2.10

2.10

MNR3015-1R5□C

1.5

±30%

0.052

1.80

1.82

MNR3015-2R2□C

2.2

±20%

0.078

1.48

1.50

MNR3015-3R3□C

3.3

±20%

0.104

1.21

1.23

MNR3015-4R7□C

4.7

±20%

0.156

1.02

1.04

MNR3015-6R8□C

6.8

±20%

0.208

0.87

0.88

MNR3015-100□C

10

±20%

0.299

0.70

0.71

MNR3015-150□C

15

±20%

0.468

0.56

0.56

MNR3015-220□C

22

±20%

0.676

0.47

0.47

MNR3015-330□C

33

±20%

1.092

0.39

0.37

MNR3015-470□C

47

±20%

1.742

0.32

0.30

PART NO.

Inductance

Tolerance

DC Resistance

Rated Current (A)

 (μH)

(%)

Max(Ω)

Isat

Irms

MNR4010  TYPE

MNR4010-1R0□C

1.0

±30%

0.130

1.80

1.05

MNR4010-2R2□C

2.2

±30%

0.195

1.15

0.89

MNR4010-3R3□C

3.3

±20%

0.234

1.10

0.82

MNR4010-4R7□C

4.7

±20%

0.273

0.90

0.75

MNR4010-6R8□C

6.8

±20%

0.390

0.74

0.62

MNR4010-100□C

10

±20%

0.494

0.56

0.60

MNR4010-150□C

15

±20%

0.663

0.47

0.51

MNR4010-220□C

22

±20%

1.131

0.36

0.40

MNR4010-330□C

33

±20%

2.002

0.28

0.30

MNR4010-470□C

47

±20%

2.353

0.24

0.28

MNR4012 TYPE

MNR4012-1R0□C

1.0

±30%

0.078

2.50

1.50

MNR4012-2R2□C

2.2

±20%

0.117

1.65

1.20

MNR4012-3R3□C

3.3

±20%

0.169

1.20

0.98

MNR4012-4R7□C

4.7

±20%

0.182

1.05

0.96

MNR4012-6R8□C

6.8

±20%

0.234

0.90

0.84

MNR4012-100□C

10

±20%

0.312

0.74

0.77

MNR4012-150□C

15

±20%

0.520

0.56

0.60

MNR4012-220□C

22

±20%

0.624

0.51

0.54

MNR4012-330□C

33

±20%

1.053

0.40

0.42

MNR4012-470□C

47

±20%

1.300

0.35

0.37

MNR4018 TYPE

MNR4018-1R0□C

1.0

±30%

0.039

4.00

1.83

MNR4018-2R2□C

2.2

±20%

0.078

2.70

1.44

MNR4018-3R3□C

3.3

±20%

0.091

2.00

1.23

MNR4018-4R7□C

4.7

±20%

0.117

1.70

1.20

MNR4018-6R8□C

6.8

±20%

0.143

1.45

1.06

MNR4018-100□C

10

±20%

0.234

1.20

0.84

MNR4018-150□C

15

±20%

0.325

0.94

0.65

MNR4018-220□C

22

±20%

0.468

0.80

0.59

MNR4018-330□C

33

±20%

0.689

0.65

0.49

MNR4018-470□C

47

±20%

0.845

0.57

0.42

MNR4018-680□C

68

±20%

1.300

0.47

0.32

MNR4018-101□C

100

±20%

1.950

0.40

0.27

MNR4018-151□C

150

±20%

3.250

0.31

0.22

MNR4018-221□C

220

±20%

5.200

0.27

0.17

MNR4026 TYPE

MNR4026-1R0□C

1.0

±30%

0.0390

3.10

2.30

MNR4026-2R3□C

2.3

±30%

0.0520

2.10

1.97

MNR4026-3R5□C

35

±20%

0.0650

1.80

1.70

MNR4026-4R7□C

4.7

±20%

0.0715

1.45

1.60

MNR4026-6R6□C

6.6

±20%

0.0845

1.30

1.50

MNR4026-100□C

10

±20%

0.1105

1.00

1.30

MNR4026-150□C

15

±20%

0.1430

0.90

1.10

MNR4026-220□C

22

±20%

0.2145

0.61

0.90

MNR4026-330□C

33

±20%

0.2600

0.54

0.80

MNR4026-470□C

47

±20%

0.3900

0.41

0.65

PART NO.

Inductance

Tolerance

DC Resistance

Rated Current (A)

 (μH)

(%)

Max(Ω)

Isat

Irms

MNR6012 TYPE

MNR6012-2R5□C

2.5

±30%

0.1170

2.10

1.73

MNR6012-3R3□C

3.3

±30%

0.1274

1.95

1.65

MNR6012-4R0□C

4.0

±30%

0.1365

1.80

1.57

MNR6012-5R3□C

5.3

±20%

0.1430

1.50

1.40

MNR6012-6R8□C

6.8

±20%

0.2145

1.30

1.18

MNR6012-100□C

10

±20%

0.3055

1.00

1.00

MNR6012-150□C

15

±20%

0.4290

0.80

0.79

MNR6012-220□C

22

±20%

0.6890

0.76

0.63

MNR6012-330□C

33

±20%

0.9100

0.59

0.53

MNR6012-470□C

47

±20%

1.3650

0.52

0.46

MNR6012-680□C

68

±20%

1.7550

0.44

0.41

MNR6012-101□C

100

±20%

2.8340

0.35

0.32

MNR6020 TYPE

MNR6020-0R8□C

0.8

±30%

0.0260

5.50

3.80

MNR6020-1R5□C

1.5

±30%

0.0338

4.00

3.20

MNR6020-2R2□C

2.2

±30%

0.0442

3.20

2.70

MNR6020-3R3□C

3.3

±30%

0.0520

2.80

2.60

MNR6020-4R7□C

4.7

±30%

0.0754

2.40

2.00

MNR6020-6R8□C

6.8

±30%

0.1105

2.00

1.80

MNR6020-100□C

10

±20%

0.1625

1.70

1.40

MNR6020-220□C

22

±20%

0.3770

1.05

0.95

MNR6028 TYPE

MNR6028-0R9□C

0.8

±30%

0.0169

6.60

4.60

MNR6028-1R5□C

1.5

±30%

0.0208

5.00

4.20

MNR6028-2R2□C

2.2

±30%

0.0260

4.20

3.70

MNR6028-3R0□C

3.0

±30%

0.0299

3.60

3.40

MNR6028-4R7□C

4.7

±20%

0.0403

2.70

3.00

MNR6028-6R0□C

6.0

±20%

0.0520

2.50

2.50

MNR6028-100□C

10

±20%

0.0845

1.90

1.90

MNR6028-150□C

15

±20%

0.1235

1.60

1.80

MNR6028-220□C

22

±20%

0.1755

1.30

1.40

MNR6028-330□C

33

±20%

0.2860

1.10

1.10

MNR6028-470□C

47

±20%

0.3900

0.95

0.92

MNR6028-680□C

68

±20%

0.5460

0.76

0.77

MNR6028-101□C

100

±20%

0.7800

0.62

0.66

MNR6045 TYPE

MNR6045-1R0□C

1.0

±30%

0.0182

8.5

4.2

MNR6045-1R3□C

1.3

±30%

0.0208

8.0

4.0

MNR6045-1R8□C

1.8

±30%

0.0234

7.0

3.7

MNR6045-2R3□C

2.3

±30%

0.0273

6.0

3.5

MNR6045-3R0□C

3.0

±30%

0.0312

5.0

3.2

MNR6045-4R5□C

4.5

±20%

0.0403

4.0

3.0

MNR6045-6R3□C

6.3

±20%

0.0494

3.8

2.8

MNR6045-100□C

10

±20%

0.0611

3.0

2.5

MNR6045-150□C

15

±20%

0.1001

2.3

1.9

MNR6045-220□C

22

±20%

0.1495

1.9

1.5

MNR6045-330□C

33

±20%

0.1885

1.5

1.4

MNR6045-470□C

47

±20%

0.286

1.3

1.1

MNR6045-680□C

68

±20%

0.429

1.0

0.9

MNR6045-101□C

100

±20%

0.650

0.8

0.7

PART NO.

Inductance

Tolerance

DC Resistance

Rated Current (A)

 (μH)

(%)

Max(Ω)

Isat

Irms

MNR8040 TYPE

MNR8040-0R9□C

0.9

±30%

0.0078

11.0

7.8

MNR8040-1R4□C

1.4

±30%

0.0091

9.0

7.0

MNR8040-2R0□C

2.0

±30%

0.0117

7.4

6.3

MNR8040-3R6□C

3.6

±30%

0.0195

5.3

4.9

MNR8040-4R7□C

4.7

±30%

0.0234

4.7

4.1

MNR8040-6R8□C

6.8

±30%

0.0325

4.0

3.7

MNR8040-100□C

10

±20%

0.0442

3.4

3.1

MNR8040-150□C

15

±20%

0.0650

2.7

2.4

MNR8040-220□C

22

±20%

0.0858

2.2

2.2

MNR8040-330□C

33

±20%

0.130

1.9

1.7

MNR8040-470□C

47

±20%

0.195

1.5

1.4

MNR8040-680□C

68

±20%

0.299

1.2

1.1

MNR8040-101□C

100

±20%

0.377

1.0

1.0
